| PRODUCT TYPE |
SIZE (RANGE) |
MATERIALS GRADE & STANDARD SPECIFICATIONS |
|

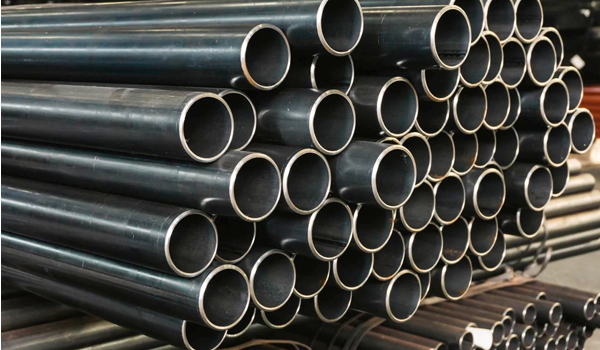

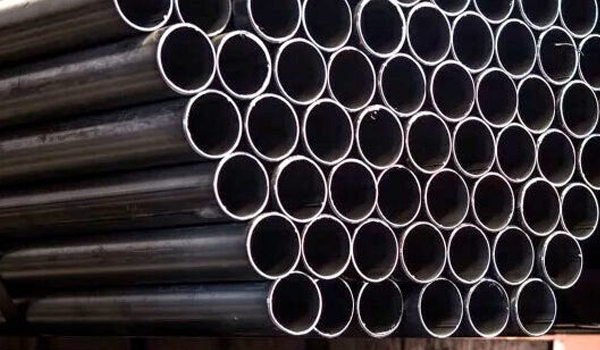

CARBON STEEL / FERRITIC/ALLOY-STEEL SEAMLESS & WELDED PIPES (SRL & DRL)
|
SEAMLESS ¼” TO 24”
ERW PIPES 1” TO 24”
EFW, SAW 24” – 120” (LSAW OR SPW)
|
ASTM A/SA53 GR B, ASTM A/SA106 GR B, ASTM A/SA333 GR.1/GR.6 / ASTM A/SA671 GR.C60/65/70, ASTM A/SA672 GR.C60/65/70, ASTM A/SA691 CM65/70/75/1CR/5CR/9CR, ASTM / ASME SA 335 GR. P1-P92 API 5L GR. B (PSL1)– X42, X52, X56, X60, X70, X80 API 5L GR. B (PSL2)– X42, X52, X56, X60, X70, X80 EN 10025 S275, S355
|
|

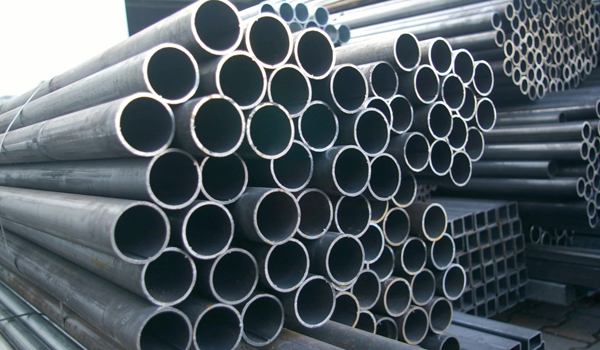

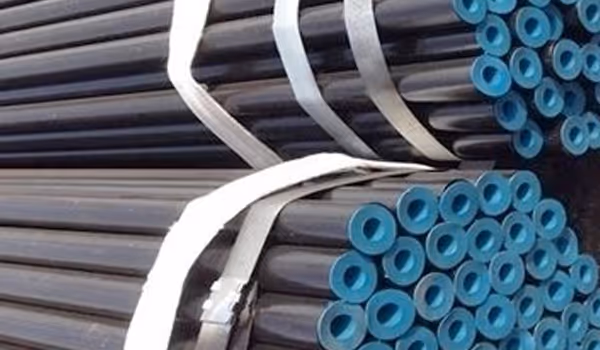

FERRITIC/AUSTENITIC STAINLESS STEEL/ DUPLEX/ SUPER DUPLEX PIPES (SRL & DRL)
|
1/2” – 24” SEAMLESS
EFW 1” – 60”
|
ASTM / ASME SA 312 GR. TP 304, 304L , 316, 316L, 321 , 347 ASTM / ASME SA 358 GR. TP 304, 304L, 316, 316L , 321 , 347 ASTM A790 JIS: G3459 G3446 G3447 G3448 G3459 G3463 G3468 DIN: 17455 17456 17457 17458 17459 2391 2462 EN: 10216-5 10217-7 UNS31803; UNS32750/ UNS08904L, TP410/TP410S
|
|

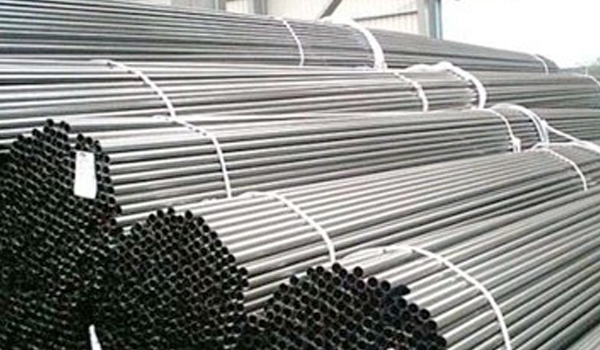

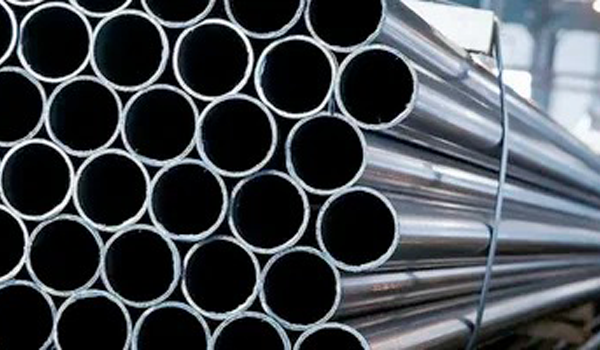

GI & MS PIPES
|
1/2” – 40”
|
ASTM A/SA53, ASTM A/SA106, ASTM A500, EN 10025 S275, S355
|
Special material such as Monel, Inconel, Cu-Ni are available on request.
Specifications: NACE, ASTM, ASME, BSEN, AP, MESC, Shell, Aramco, Adnoc, DGS, KOC, KNPC, Norsok, etc.
Certification: EN10204 3.1 or 3.2 by IACS approved third parties.
Coating & special services: Pipe cutting, Threading, Beveling, Grooving, Hot dipped galvanized, Three layer polyethylene/ Propylene (3lpe/ 3lpp), Cement mortar lining, Coal tar enamel (cte), and Primer, etc. can be provided.
Wall thickness: Schedule 10 to xxs. special wall thicknesses or intermediate walls are also available in stock.
